TND140

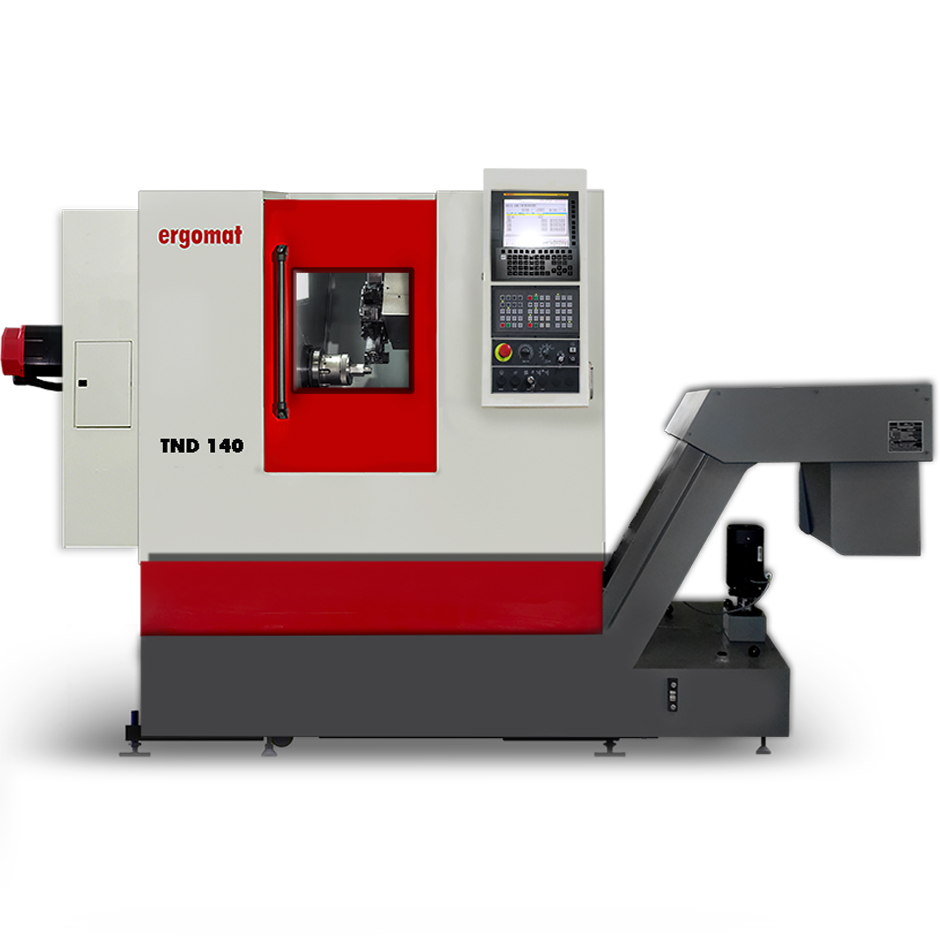

Ergomat CNC Universal Lathe
Model TND 140
• Extremely compact design concept
• Sturdy machine frame
• High performance machining
• User friendly
• 60º slant bed for optimal chip flow
• Servo driven 12-position turret
• Robust tailstock *
• Control FANUC 0i-TF
• All drives and servos FANUC
• Generous working space
• Compact external dimensions
• Cross slide and tailstock travelling on high-precision linear guides
• Servo-operated turret with 12 tool positions with direct tool clamping or VDI 25*
• Live tools VDI25*
• Programmable tailstock*
• Coolant system 6 bar (87 psi), option* 20 bar (290 psi)
• Moveable coolant tank for easy cleaning
• Chip conveyor* integrated in coolant tank
• Quick-change collet system
• Depth stop *
• Parts catcher with swivel arm and part gasket – parts can be removed while the machine is running*
• Parts conveyor*
• Chuck 135 mm (5.3“) or 160 mm* (6.3”)
• Interface for bar loading magazine*
Option*
| Model | TND 140 | |
|---|---|---|
| Control | Fanuc 0i-TF | |
| Working range | ||
| Swivel Ø over bed | mm (inches) | 440 (17.3) |
| Turning Ø over cross slide | mm (inches) | 230 (9.06) |
| Turning Ø with standard tools | mm (inches) | 180 (7.09) |
| Travel in X | mm (inches) | 125 (4.92) |
| Travel in Z | mm (inches) | 250 (9.84) |
| Main Spindle | ||
| spindle speed max | rpm | 5000 |
| Ø Spindelnase | mm (inches) | 140 |
| Bar capacity | mm (inches) | 42 |
| Collets | DIN 4363 | 173 E |
| Ergomat collet quick change system | standard | |
| B & S | available * | |
| Chuck Ø | mm (inches) | 135 (5.31) |
| Chuck Ø Option | mm (inches) | 160 (6.30) |
| Spindle Drive | ||
| spindle speed max | rpm | 5000 |
| Power 100% / 25% | kW | 5,5/7,5 |
| Power 100% / 25% | HP | 7.3 / 10.0 |
| Torque100% / 25% | Nm | 42/70 |
| Axes drives | ||
| rapid feed in X and Z | m/min | 30 |
| Turret | ||
| number of tools | 12 | |
| tool shaft square | mm (inches) | 16 x 16 (0.63 x 0.63) |
| tool shaft Ø | mm (inches) | 25 (0.98) |
| Tool holder standard * | VDI25 | |
| C-Axis | ||
| resolution | degrees | 8.8999999999999996E-2 |
| speed max | rpm | 100 |
| Live tools | ||
| number of live tools * | 12 | |
| Tool holder standard * | VDI 25 | |
| Ø tool shaft | mm (inches) | 13 (0.52) |
| Power | kW / HP | 2,2 /2.93 |
| Torque | Nm | 8 |
| Tool speed | rpm | 5000 |
| Tailstock | ||
| servo driven | ||
| Quill | CM3 | |
| Cooling system | ||
| Cooling pressure | bar | 4 / 20* |
| Cooling pressure | psi | 87 / 293* |
| Tank capacity | l (gallons) | 135 (37) |
| Dimensions | ||
| Weight | kg (lbs) | 3600 (7900) |
