THR

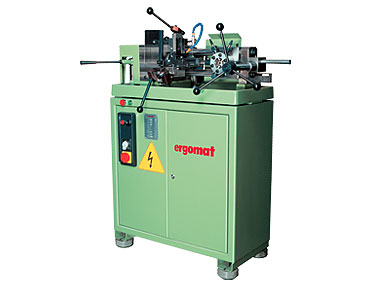

Turret lathe for second operations
For second operations or for the machining of precut or preformed parts. Also, turning from bars
Standard equipment:
• Spindle A 25 for bar capacity 26 mm (1 “)
• Sixteen spindle speeds available (250 – 4550 rpm)
• Two manually driven radial tool slides, for facing, chamfering, deburring and forming operations
• 6-position turret for drilling and long turning operations mounted on sturdy guide shafts for maximum stability
• Automatic Tapping device available
• Turret disk additionally stabilized by high-precision pivots for high accurate repeatability
| Model | THR 26 | |
|---|---|---|
| Bar capacity | ||
| Round | mm (inches) | 26 (1.03) |
| Hexagonal | mm (inches) | 22 (0.87) |
| Square | mm (inches) | 18 (0.71) |
| Collet standard | DIN 6343 | 161 E |
| Collet option | B & S | |
| Spindle motor | ||
| Power | kW / HP | 0,92 / 1,25 |
| Spindle speeds min - max | rpm | 250 - 4.550 |
| speed steps | 16 | |
| Travel horizontal slide | mm (inches) | 20 (0.79) |
| Travel vertical slide | mm (inches) | 20 (0.79) |
| 6 positions turret | ||
| travel in Z | mm (inches) | 80 (3.15) |
| Tool shaft Ø | inches | 3/4” H7 |
| Ø turret drum | mm (inches) | 120 (4.72) |
| Abstand Spannzange Werkzeugtrommel (min./max.) | mm | 62/150 |
| distance collet turret drum (min/max) | inches | 2.44/5.90 |
| travel automatic tapping device | mm (inches) | 62 (2.44) |
| Thread Ø (I.D./O.D.) (min/max) | M3/M14 | |
| Cooling tank | ||
| Capacity | l (gallons) | 15 (4.0) |
| Weight | kg (lbs) | 450 (990) |
