TB/TBF/TBH
Single Spindle Cam Controlled Automatic Lathe
Model TB

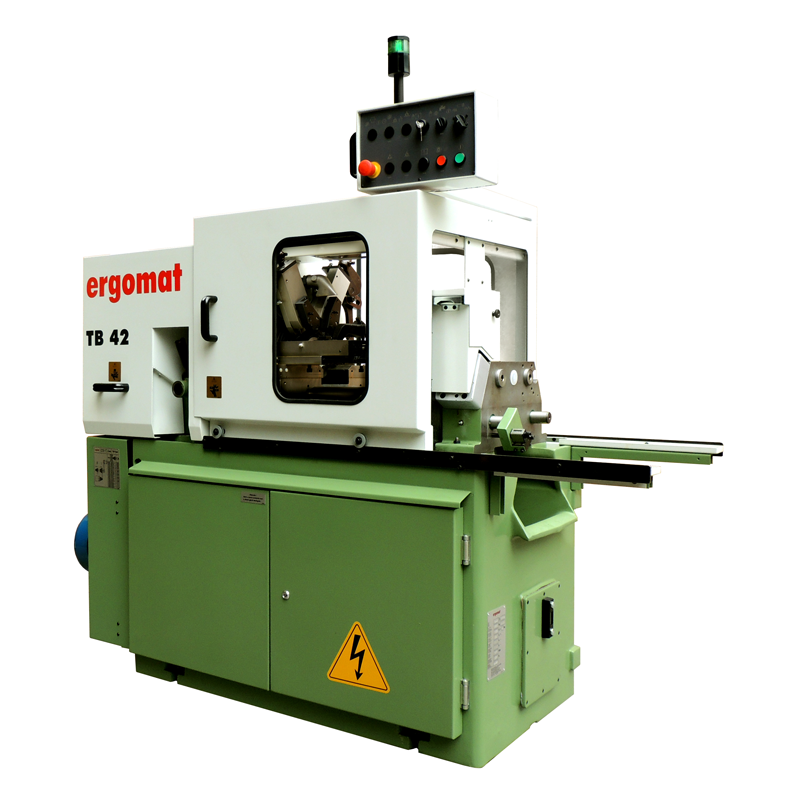

TB42, TB60 and TB80 screw machines are automatics for heavy-duty machining that can be used extremely economically for the production of medium to large batch sizes.
In their basic version, the machines are equipped with a tailstock and quill and four radial tool slides mounted on the tailstock.
CE-compliant housing and electrics comes standard.
B&S collets available
Available as additional equipment:
- Six-positions turret (SRV)
- Thread milling and polygon turning attachment (GFRE)
- Single point turning attachment (LEV)
- Counter spindle (GLE)
TB machines in special execution:
- TBF 42 – with hydraulic clamping, for chuck Ø 110 mm (4,33 “)
- TBH 60 and TBH 80 – with hydraulic collet clamping
High machining accuracy
Extremely long service life
Manuals in electronic format
Training manual curve calculation available
| Model | TB 42 / TBF 42 | TB 60 / TBH 60 | TB80 / TBH 80 | |
|---|---|---|---|---|
| Bar capacity | ||||
| round | mm (inches) | 42 (1.65) | 60 (2.36) | 80* (3.15) * |
| hexagonal | mm (inches) | 36 (1.42) | 52 (2.05) | 69* (2.72)* |
| square | mm (inches) | 29 (1.14) | 42 (1.65) | 56* (2.20) |
| Collet standard | DIN 6343 | 173 E | 185 E | 190-E |
| Collet option | B & S | B & S | B & S | |
| distance max spindle tailstock | mm (inches) | 370 (14.57) | 370 (14.57) | 370 (14.57) |
| long turning attachment travel | mm (inches) | 100 (3.94) | 100 (3.94) | 100 (3.94) |
| Production output min / max | parts/hour | 10 a 975 | 10 a 975 | 10 a 975 |
| Spindle drive | kW (HP) | 6 (8.0) | 6 (8.0) | 6 (8.0) |
| Spindle speed max | rpm | 2000 | 1600 | 1600 |
| Vertical slides travel | mm (inches) | 40 (1.57) | 40 (1.57) | 43 (1.69) |
| Horizontal slides travel | mm (inches) | 40 (1.57) | 40 (1.57) | 43 (1.69) |
| Net weight | kg (pounds) | 1460 (3220) | 1460 (3220) | 1460 (3220) |
| * Bar material > 60 mm (2,36 ") : only pipe allowed |
