A15/A25

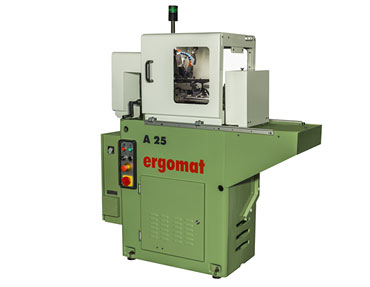

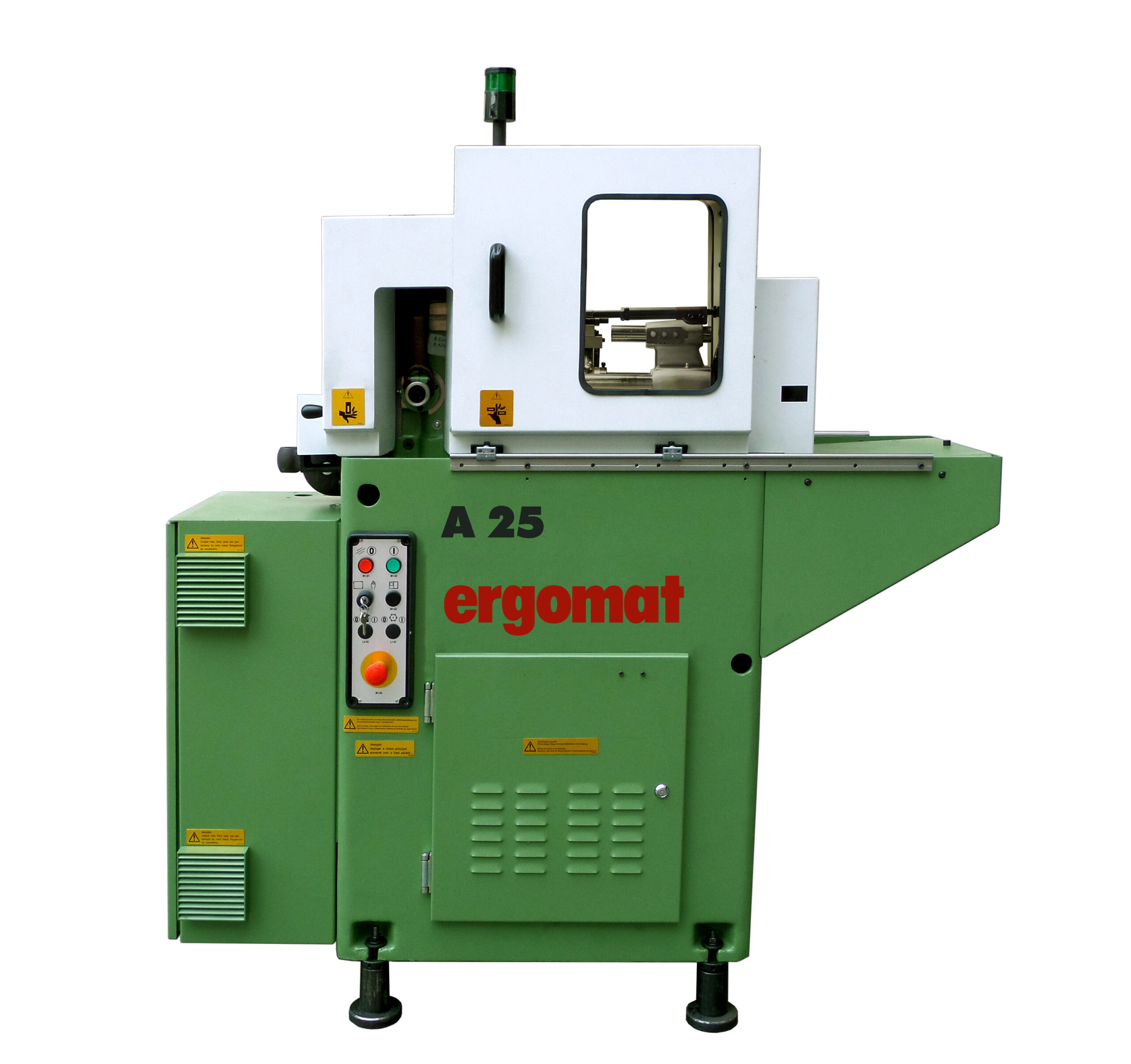

Cam Controlled Screw Machines A15 / A25
A15 and A25 automatic lathes are high-performance screw machines that can be used extremely economically for the production of medium to large batch sizes.
In their basic version, the machines are equipped with a tailstock and quill and four tool slides guided radially on the headstock. CE-compliant housing and electrics are a matter of course.
The following are available as additional equipment:
• Boring and tapping attachment (BGSE)
• Double boring attachment (DBE)
• Four positions turret (SRV)
• Four positions turret and spindle reversion (TS)
• Thread milling and polygon turning attachment (GFRE)
• Long turning attachment (LEV)
• Sub spindle (GLE)
Bar capacity 15 mm (A 15) or 25 mm (A 25)
B&S collets available
Synchronous machining of several tools, resulting in unbeatably short cycle times
Machine design allows for a variety of accessories
High machining accuracy
Extremely long service life
Manuals in electronic format
Cam Calculation Training Manual
| Model | A 15 | A 25 | |
|---|---|---|---|
| Bar capacity | |||
| Round | mm (inches) | 15 (0.59) | 25 (0.98) |
| Hexagonal | mm (inches) | 13 (0.51) | 22 (0.87) |
| Square | mm (inches) | 10 (0.39) | 18 (0.71) |
| Collet standard | DIN 6343 | 140 E | 161 E |
| Collet option | B & S | B & S | |
| Distance max spindle squill | mm (inches) | 240 (9.45) | 240 (9.45) |
| Long turning attachment: travel | mm (inches) | 70 (2.76) | 70 (2.76) |
| Production output min / max | parts/hour | 28 / 2100 | 28 / 2100 |
| Spindle drive | kW (HP) | 2,2 (3.0) | 2,2 (3.0) |
| Spindle spped max | rpm | 6500 | 4000 |
| Vertical slides travel | mm (inches) | 22 (0.87) | 22 (0.87) |
| Horizontal slides travel | mm (inches) | 22 (0.87) | 22 (0.87) |
| Net weight | kg (pounds) | 560 (1234) | 560 (1234) |
