TB-E

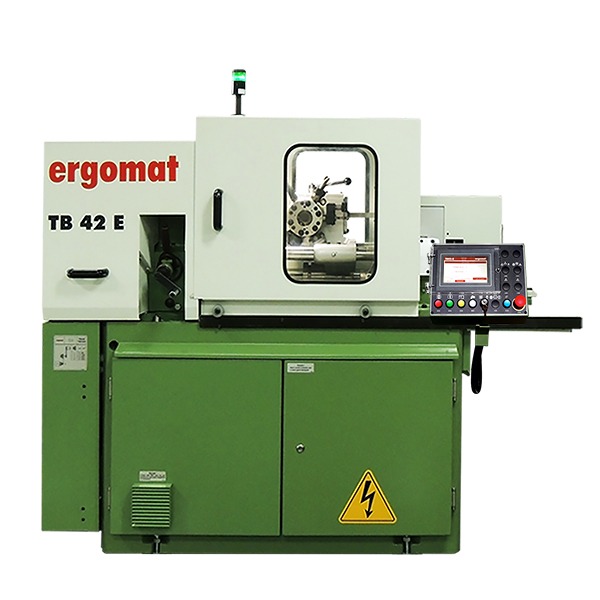

Single Spindle Cam Controlled Automatic Lathe
Models TB E
With electronic spindle speed and feed control
TB 42 E, TB 60 E and TB 80 E screw machines are automatics for heavy-duty machining that can be used extremely economically for the production of medium to large batch sizes.
In their basic version, the machines are equipped with a tailstock and quill and four radial tool slides mounted on the tailstock.
CE-compliant housing and electrics comes standard.
Depending on the torque required at the spindle, four speed ranges can be set
(0 – 25%, 0 – 50%, 0 – 75% and 0 – 100% of nominal spindle speed)
B&S collets available
Available as additional equipment:
• Six-positions turret (SRV)
• Thread milling and polygon turning attachment (GFRE)
• Single point turning attachment (LEV)
• Counter spindle (GLE)
TB machines in special execution:
• TBF 42 – with hydraulic clamping, for chuck Ø 110 mm (4,33 “)
• TBH 60 and TBH 80 – with hydraulic collet clamping
High machining accuracy
Extremely long service life
Manuals in electronic format
Training manual curve calculation available
| Model | TB 42 E | TB 60 E | |
|---|---|---|---|
| Bar capacity | |||
| round | mm (inches) | 42 (1.65) | 60 (2.36) |
| hexagonal | mm (inches) | 36 (1.42) | 52 (2.05) |
| square | mm (inches) | 29 (1.14) | 42 (1.65) |
| Collet standard | DIN 6343 | 173 E | 185 E |
| Collet option | B & S | ||
| distance max spindle tailstock | mm (inches) | 370 (14.57) | 370 (14.57) |
| long turning attachment travel | mm (inches) | 100 (3.94) | 100 (3.94) |
| Production output min / max | parts/hour | 16 - 800 | 16 - 800 |
| Spindle drive | kW (HP) | 5,5 (7.4) | 5,5 (7.4) |
| Spindle speed max | rpm | 3250 | 2650 |
| Vertical slides travel | mm (inches) | 40 (1.57) | 40 (1.57) |
| Horizontal slides travel | mm (inches) | 40 (1.57) | 40 (1.57) |
| Net weight | kg (pounds) | 1460 (3220) | 1460 (3220) |
| * Bar material > 60 mm (2,36 ") : only pipe allowed |
