TND-S

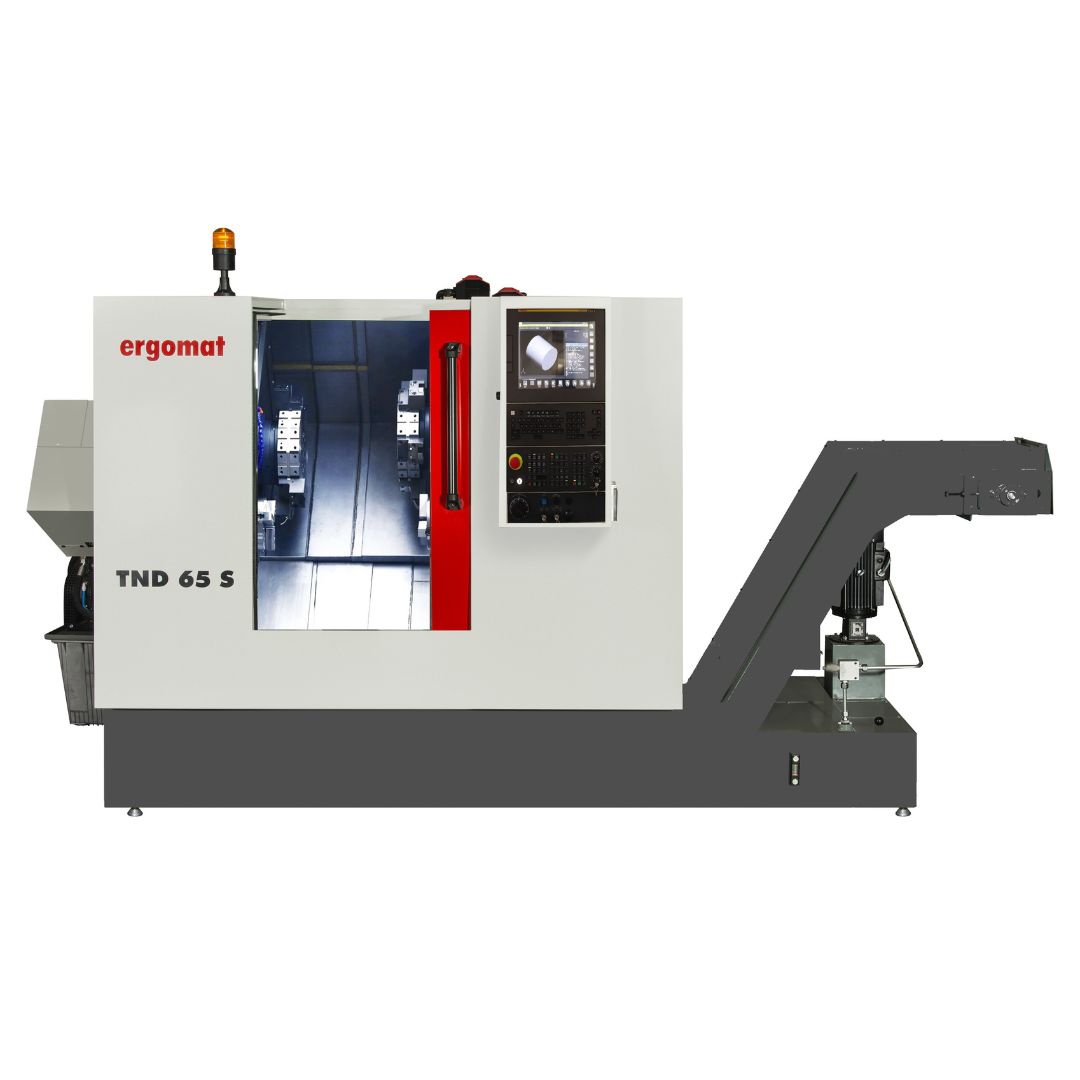

TND 45 S and TND 65 S
CNC Turning Center with Two Turret, Y Axis and Sub-Spindle
Ergomat TND 45 S and TND 65 S lathes are designed for the finished production of complex turned parts in serial production.
The sturdy and vibration-absorbing machine frame has a 60º slant bed for uninhibited chip fall and excellent accessibility to the working area.
The modern machine elements used ensure maximum dimensional accuracy and reliable repeatability when machining even hard-to-machine materials.
The TND 45 S and TND 65 S comes standard with a main and a counter spindle, Main Spindle Side Servo-Turret and Sub-Spindle Side Servo-turret for BMT 55 tool holders for live tools.

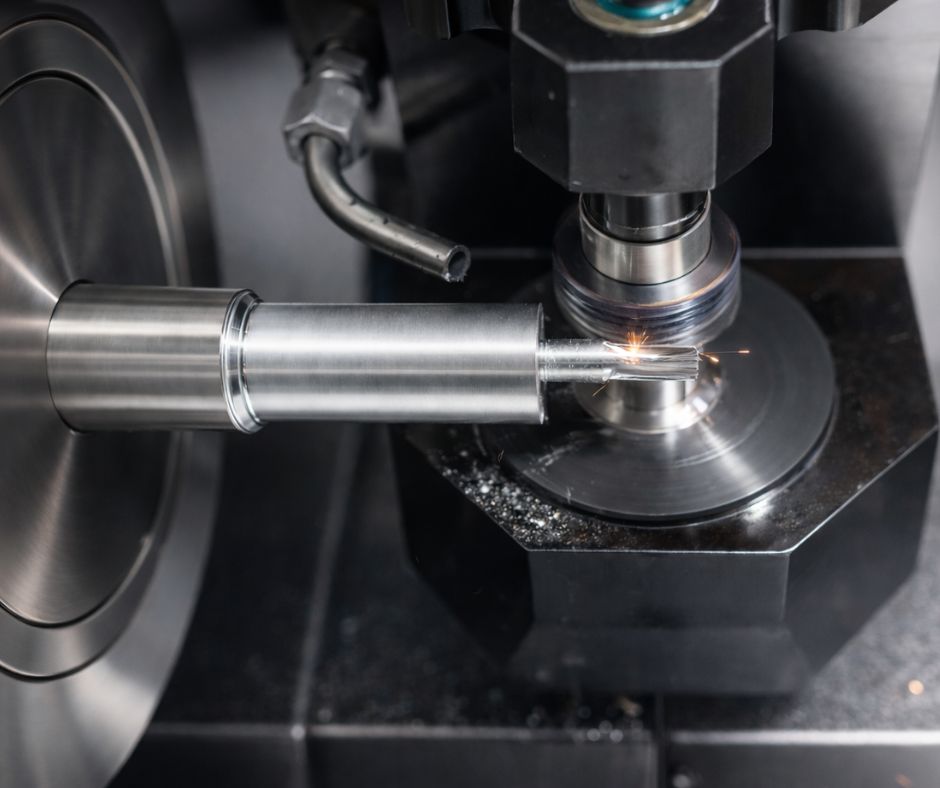

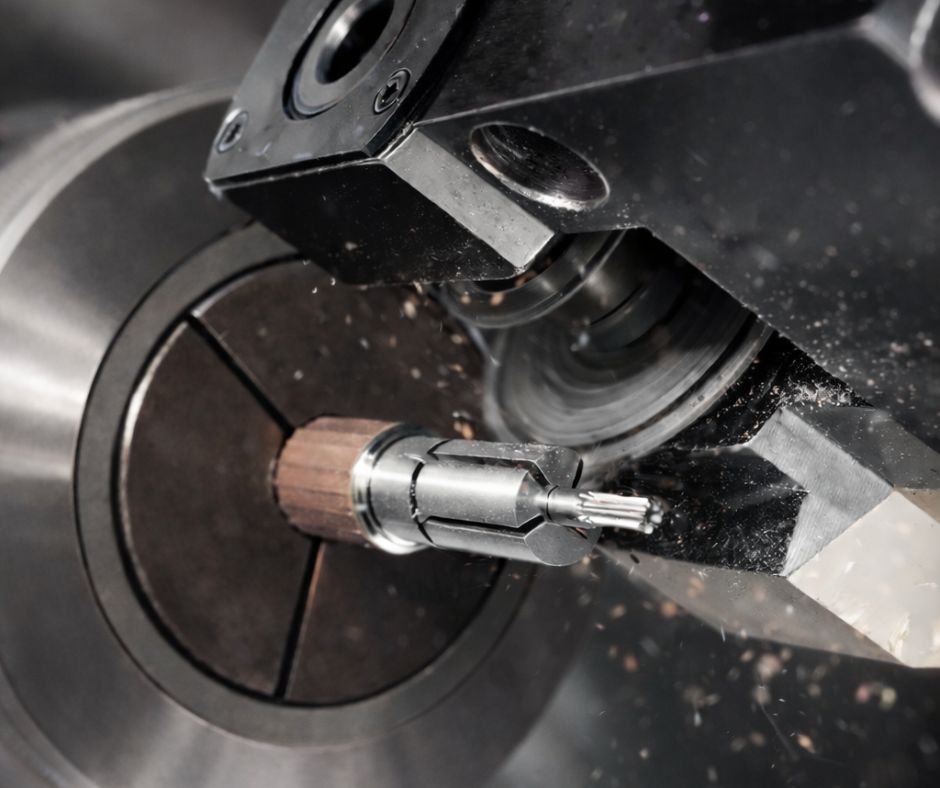

Radial and axial milling operations, as well as axial machining outside of the center of the spindle are available with live tools on both turrets.
The parts separator is integrated in the lower turret, via which the workpiece is guided onto the conveyor belt, which leads the machined parts to the left-hand side discharge.
The chip conveyor is integrated in the coolant tank.
FANUC 0i-TF Plus dual path control with a 15″ Touch Screen Monitor for full comfort programming and easy set-up, and the modern machine concept make the turning center TND-S series an extraordinarily user-friendly full capacity lathe for minimum cycle times, high production output and process reliability.
• FANUC 0i-TF Plus dual path control
• 15″ Touch Screen Monitor
• 60° slant bed for free chip fall
• Compact machine dimensions with generous working space
• Excellent accessibility to the work area
• Easy to program und to operate
• Main and Sub spindle with bar capacity:
– Ø 45 mm (1.77”) on the TND 45 S and
– Ø 65 mm (2.55”) on the TND 65 S
• Sub spindle with part ejection and supervision
• Quick chande Collet System as DIN6343 173-E Style for A42 Colltes and 185-E for A60 Collets
• C axis on main and sub spindle
• Main spindle side servo-turret with 12 position for live tools
• Sub spindle side servo-turret with 12 position for live tools
• 6 bar (87psi) cooling pressure standard. Optional 20 bar (290 psi) coolant system with oil chiller integrate*
• Easy movable coolant tank (for cleaning purposes) with integrated chip conveyor
• Parts catcher with discharge on the side of the machine
• Interface for bar loading magazine
*Option
| Models | TND 45 S | TND 65 S | |||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Numerical control | Fanuc 0i-TF Plus | ||||||||||||||||||||||||
| Monitor | Touch Screen 15" | ||||||||||||||||||||||||
| Main drive | |||||||||||||||||||||||||
| Power 100% / 25% | kW | Nov-15 | |||||||||||||||||||||||
| Torque 100% / 25% | Nm | 67 / 122 | 90 / 164 | ||||||||||||||||||||||
| Maximum rotation | rpm | 5,000 | 4,000 | ||||||||||||||||||||||
| Bar passage diameter | mm | 45 | 65 | ||||||||||||||||||||||
| Collets DIN 6343 | A42 (173E) | A60 (185E) | |||||||||||||||||||||||
| Other clamping systems | opcional | ||||||||||||||||||||||||
| C-axis | |||||||||||||||||||||||||
| Maximum rotation | rpm | 300 | |||||||||||||||||||||||
| Resolution | degrees | 0.001 | |||||||||||||||||||||||
| Sub-spindle | |||||||||||||||||||||||||
| Power 100% / 25% | kW | 5,5 / 7,5 | |||||||||||||||||||||||
| Torque 100% / 25% | Nm | 52 / 95 | |||||||||||||||||||||||
| Maximum rotation | rpm | 5,000 | 4,000 | ||||||||||||||||||||||
| Bar passage diameter | mm | 60 | |||||||||||||||||||||||
| Collets DIN 6343 | A42 (173E) | A60 (185E) | |||||||||||||||||||||||
| Other clamping systems | opcional | ||||||||||||||||||||||||
| C-axis | |||||||||||||||||||||||||
| Maximum rotation | rpm | 300 | |||||||||||||||||||||||
| Resolution | degrees | 0.001 | |||||||||||||||||||||||
| Left cross slide (X1/Y1/Z1) | |||||||||||||||||||||||||
| Rapid traverse (X1/Y1/Z1) | m/min | 20 | 20 | 30 | |||||||||||||||||||||||
| Stroke (X1/Y1/Z1) | mm | 186 | 80 | 240 | |||||||||||||||||||||||
| Feed force | Nm | 4.520 | 4.520 | 4.520 | |||||||||||||||||||||||
| Turret (X1/Y1/Z1) | |||||||||||||||||||||||||
| Number of fixed / driven tools | 12 | ||||||||||||||||||||||||
| Tool cross-section | mm | 25 x 25 | |||||||||||||||||||||||
| Tool holder mounting standard | BMT 55 | ||||||||||||||||||||||||
| Driven tool power | kW | 2.7 | |||||||||||||||||||||||
| Driven tool torque | Nm | Dec-32 | |||||||||||||||||||||||
| Maximum driven tool rotation | rpm | 4,000 | |||||||||||||||||||||||
| Right cross slide (X2/Y2/Z2) | |||||||||||||||||||||||||
| Rapid traverse (X2/Y2/Z2) | m/min | 20 | 20 | 30 | |||||||||||||||||||||||
| Stroke (X2/Y2/Z2) | mm | 186 | 80 | 265 | |||||||||||||||||||||||
| Feed force | Nm | 4.520 | 4.520 | 4.520 | |||||||||||||||||||||||
| Turret (X2/Y2/Z2) | |||||||||||||||||||||||||
| Number of fixed / driven tools | 12 | ||||||||||||||||||||||||
| Tool cross-section | mm | 25 x 25 | |||||||||||||||||||||||
| Tool holder mounting standard | BMT 55 | ||||||||||||||||||||||||
| Driven tool power | kW | 2.7 | |||||||||||||||||||||||
| Driven tool torque | Nm | Dec-32 | |||||||||||||||||||||||
| Maximum driven tool rotation | rpm | 4,000 | |||||||||||||||||||||||
| Dimensions | |||||||||||||||||||||||||
| W x D x H (without chip conveyor) | mm | 2.800 x 2.030 x 2.000 | |||||||||||||||||||||||
| Weight | kg | 6,500 |
