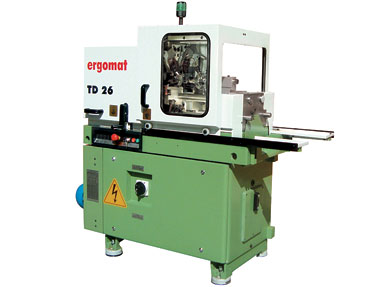

TD cam controlled single spindle screw machines

TD automatic lathes are cam-controlled high-performance screw machines that are used extremely economically for the production of medium to large batch sizes.
The TD machine is designed to produce complex turned parts in high scale; a large number of special accessories are available for this purpose.
In its basic version, the machine is equipped with a tailstock and quill and four radial tool slides on the headstock.
CE-compliant housing and electrics comes standard.

Processing of bars up to
16 mm (0.63”) on the TD 16,
26 mm (1.02”) on the TD 26 mm and
36 mm (1.42”), limited to pipe material, when > 26 mm (1.02”) on the TD 36

B&S collets available

Overlapping machining of several tools, resulting in high part output
Modular construction
High manufacturing precision

Special machine execution: TDF 26 – with hydraulic clamping, can also be fitted with a Ø 70 mm (2.76”) chuck

Available as additional attachments:

• Six position turret (SRV)
• Thread milling and polygon turning attachment (GFRE)
• Long turning attachment (LEV)
• Gripping attachment
• Back drilling and slotting attachment
• Front thread chasing attachment (GSTE)
• Rear thread chasing attachment
• counter spindle (GLE)

Manuals in electronic format
Cam Calculation Training Manual

ModelTD 16TD 26 / TDF 26TD 36
Bar capacity
roundmm (inches)16 (0.63)26 (1.02)36* (1.42)*
hexagonalmm (inches)13 (0.51)22 (0.87)31* (1.22)*
squaremm (inches)1118 (0.71)25* (0.98)*
Collet standardDIN 6343140 E161 E171 E
Collet optionB & SB & SB & S
distance max spindle tailstockmm (inches)285 (11.22)285 (11.22)285 (11.22)
long turning attachment travelmm (inches)70 (2.76)70 (2.76)70 (2.76)
Spindle drivekW (HP)3 (4)3 (4)3 (4)
Spindle speed maxrpm800047504000
Vertical slides travelmm (inches)35 (1.38)35 (1.38)35 (1.38)
Horizontal slides travelmm (inches)35 (1.38)35 (1.38)35 (1.38)
Net weightkg (lb)840 (1852)840 (1852)840 (1852)
* Bar material > 26 mm (1.0") : only pipe allowed
