TBA
TBA 42 und TBA 60
CNC Multi-Slide Automatic Lathes

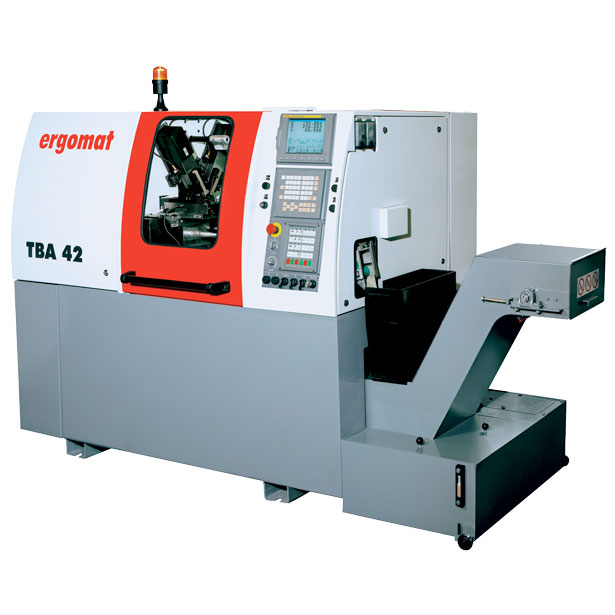

CNC controlled multi-slide automatic lathes TBA 42 and TBA 60 were designed for the high speed production of turned parts in medium and small batch sizes. Four radially arranged tool slides and the axially travelling 6-position turret enable simultaneous machining with up to 3 or 4 tools. This is the reason for outstanding high production rates achievable on TBA machines.
All slides are driven by servomotors, for most accurate and fast positioning. The main spindle is driven by a spindle motor with high torque and constant power over a wide speed range; this means that all kind of material can be machined with superior process reliability.
The main spindle high-precision ball bearings are lifelong lubricated and a central lubrication with constant monitoring comes standard with the TBA series.
- Fanuc 0i – TF
- Easy setup with dual path control
- Simultaneous machining for extremely short cycle times
- servo-driven 6-station turret
- four radial slides around the spindle for forming and cutting
- Front cross-slide for single point turning and threading operations
- Ergomat collet quick-change system
- High repeatability and precision in processing
Accessories:
- Servo-driven thread milling and polygonal turning attachment
- Mechanically adjustable clamping pressure control for sensitive bar materials
- Special executions with bar capacity Ø 30 mm (1.18”) and
- TBA 80.1 bars up to Ø 80 mm (3.15”)
| Model | TBA 42 | TBA 60 | TBA 30 | TBA 80.1 | |
|---|---|---|---|---|---|
| Control | Fanuc 0i-TF | Fanuc 0i-TF | Fanuc 0i-TF | Fanuc 0i-TF | |
| Spindle | |||||
| Power | kW (HP) | 7,5 (10) | 7,5 (10) | 7,5 (10) | 7,5 (10) |
| Spindle speed max | rpm | 5000 | 3150 | 6000 | 3150 |
| Drehmoment – 100 % ED | Nm | 95.5 | 95.5 | 95.5 | 95.5 |
| Bar capacity | |||||
| Round | mm (inches) | 42 (1.65) | 60 (2.36) | 30 (1.18) | 80* (3.15)* |
| Hexagonal | mm (inches) | 36 (1.42) | 52 (2.05) | 26 (1.02) | 69* (2.72)* |
| Square | mm (inches) | 29 (1.14) | 42 (1.65) | 21 (0.83) | 56* (2.20) |
| Collet standard | DIN 6343 | 173 E | 185 E | 163 E | - |
| Collet option | B & S | B & S | B & S | B & S | |
| Turret | |||||
| Number of tools | 6 | 6 | 6 | 6 | |
| Tool shaft | mm (inches) | 25,4 (1.0) | 25,4 (1.0) | 25,4 (1.0) | 25,4 (1.0) |
| Switching time | seconds | 0.4 | 0.4 | 0.4 | 0.4 |
| Cross Slides | |||||
| Tool square shafts | mm (inches) | 16 x 16 (0.63 x 0.63) | 16 x 16 (0.63 x 0.63) | 16 x 16 (0.63 x 0.63) | 16 x 16 (0.63 x 0.63) |
| Travel cross slide X1Z1 | mm (inches) | 45/100 (1.77/3,94) | 45/100 (1.77/3,94) | 45/100 (1.77/3,94) | 45/100 (1.77/3,94) |
| Travel horizontal slide X2 | mm (inches) | 45 | 45 | 45 | 45 |
| Dimensions | |||||
| Net weight | kg (lb) | 2100 (4630) | 2100 (4630) | 2100 (4630) | 2100 (4630) |
| * bar material > 60 mm: only pipe allowed | |||||
